General
SG series three-phase dry-type transformers are widely used in AC three-phase power supply with 50-60Hz AC and input and output voltages up to 500V. The various input and output voltages of the product, the connection group, the number and position of the adjustment taps (generally土5%), the distribution of the winding capacity, the configuration of the secondary single-phase winding, the operation of the rectifier circuit, whether it is required The outer casing and the like can be carefully designed and manufactured according to the requirements of the user. ZSG series three-phase dry rectifier transformers are used for rectification equipment, rectification for charging, voltage regulation and DC power supply.

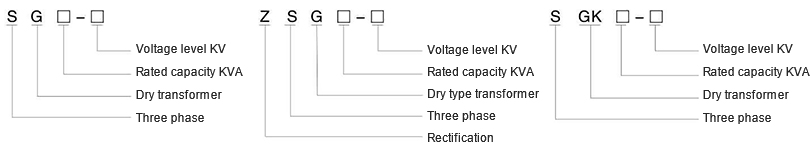

Code Explantion

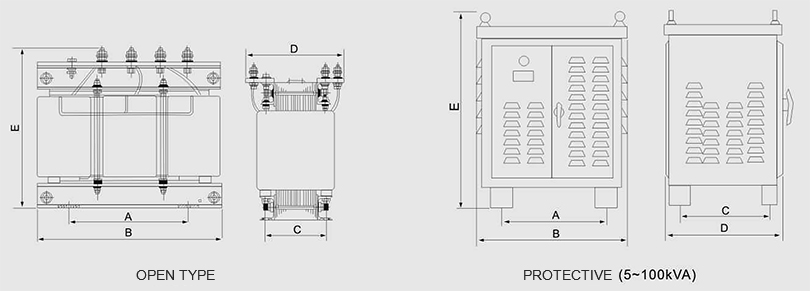

Structure And Size
Technical Index
Model |
Capacity |
Output voltage(v) |
Join group number |
Dimensions(mm) |
Installation size |
K * J |
|||||||||
Input |
Output |
Open type |
Protective |
Open type |
Protective | ||||||||||
B max |
D max |
E max |
B max |
D max |
E max |
A±5 |
C± 5 |
A±5 |
C±5 |
||||||
DG/SG/ZSG/SGK-4 |
4 |
66 |
380 |
Y/yno(Y/Yo) |
300 |
200 |
350 |
510 |
400 |
550 |
200 |
135 |
420 |
220 |
|
DG/SG/ZSG/SGK-5 |
5 |
||||||||||||||
DG/SG/ZSG/SGK-10 |
10 |
420 |
220 |
460 |
560 |
430 |
600 |
320 |
150 |
470 |
230 |
φ12 |
|||
DG/SG/ZSG/SGK-15 |
15 |
480 |
220 |
520 |
600 |
440 |
620 |
320 |
150 |
580 |
240 |
||||
DG/SG/ZSG/SGK-20 |
20 |
620 |
230 |
500 |
650 |
440 |
650 |
320 |
150 |
770 |
300 |
||||
DG/SG/ZSG/SGK-30 |
30 |
660 |
240 |
530 |
870 |
500 |
780 |
420 |
160 |
|
|
||||
DG/SG/ZSG/SGK-40 |
40 |
750 |
350 |
520 |
960 |
550 |
810 |
420 |
170 |
870 |
350 |
||||
SG/ZSG/SGK-50 |
50 |
||||||||||||||
DG/SG/ZSG/SGK-60 |
60 |
800 |
450 |
650 |
1000 |
810 |
810 |
420 |
195 |
900 |
350 |
||||
DG/SG/ZSG/SGK-80 |
80 |
||||||||||||||
DG/SG/ZSG/SGK-100 |
100 |
860 |
450 |
650 |
1050 |
810 |
810 |
420 |
220 |
960 |
350 |
||||
DG/SG/ZSG/SGK-125 |
125 |
860 |
500 |
700 |
|
|
|
|
|
|
|
||||
DG/SG/ZSG/SGK-160 |
160 |
950 |
600 |
800 |
|
|
|
|
|
|
|
||||
DG/SG/ZSG/SGK-200 |
200 |
1000 |
680 |
850 |
|
|
|
|
|
|
|
||||
DG/SG/ZSG/SGK-250 |
250 |
1050 |
700 |
850 |
|
|
|
|
|
|
|
||||
